Wrist And Foot Strap Tester
Wrist And Foot Strap Tester
Wrist And Foot Strap Tester
Wrist And Foot Strap Tester
Wrist And Foot Strap Tester

Wrist And Foot Strap Tester

Price Interview

Price Interview

Wrist And Foot Strap Tester

Interview

Select the number of specifications

Please check the product information you want!

Product Detail

Product Description
Instrument size
(W)166mm*(L)96mm*(H)40mm
Pedal size
(W)420mm*(L)400mm*(H)20mm
Adjustment distance of movable support
>150mm
Left shoe setting value
750KΩ-100MΩ
Right shoe setting value
750KΩ-100MΩ
Wrist setting value
750KΩ-10MΩ
Movable support
Minimum 700mm, maximum 1200 mm.
Total weight
7KG
Specification
Applications:

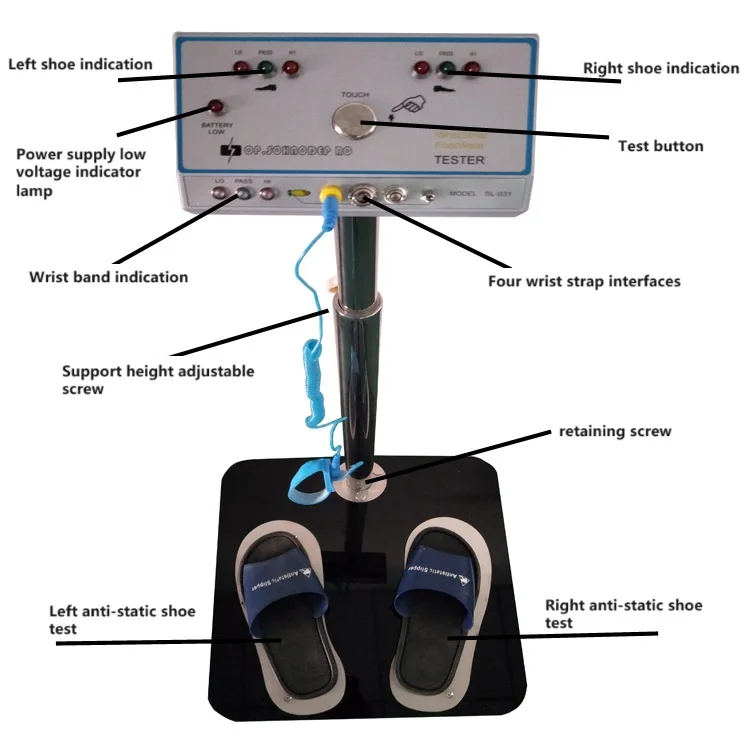

SL-031 Dual Footwear/Wrist Strap Tester, ESD Tester is a 3-state touch tester designed for fast, frequent testing of personnel
grounding device.
Fast testing separately for wrist straps and grounder test units.
Easy to operate.

Using method :

1. move the switch to "foot wear"in the left,puffing on ESD shoes,then stand on the test board, press the key "press to test",the
indicator on the left is the resistance for the left shoe,and the right is the resistance for the right one
2.move the switch to "wrist stap",wearing wrist strap,and put the plug or alligator clip to jack(alligator clip pole),
press the key "press to test",the indicator on the right is the resistance for wrist strap.


Testing ESD wrist strap:

Dial “Selective switch”to “WRSIT STRAP”&FOOTWEAR” key,connect wrist strap and plug socket or alligator clip into the outlet,then
press”PRESS TO TEST”key,the value shown on the top middle place is the wrist strap resistance.


Test ESD shoe/heel grounder:

Dial”Selective switch”to”foot wear”,then stand on the testing board after wearing ESD shoes,press”PRESS TO TEST”key.In this
way,Left light will display the ground resistance of the left foot wearing ESD shoe & Right light will show the ground resistance
of right foot wearing the ESD shoe.

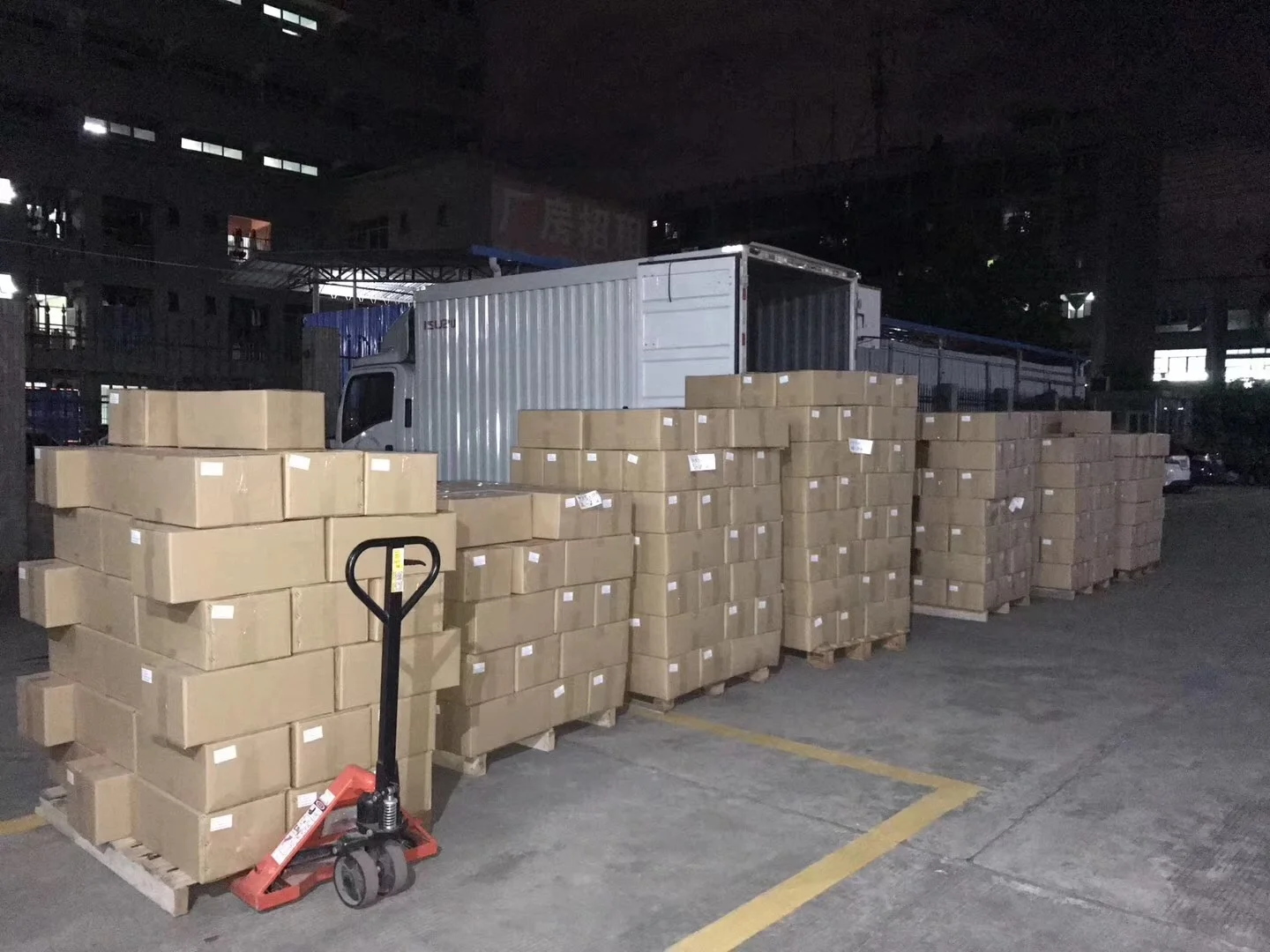

Packing & Delivery

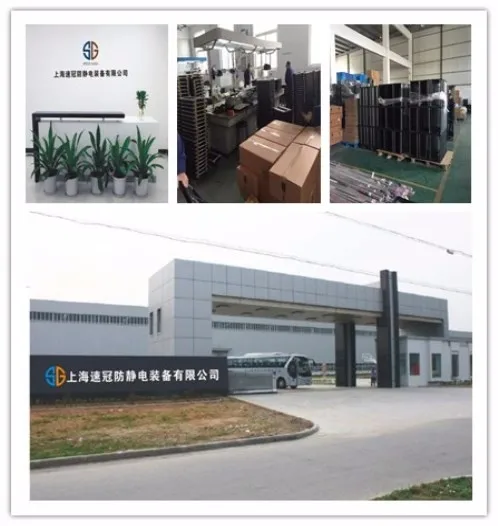

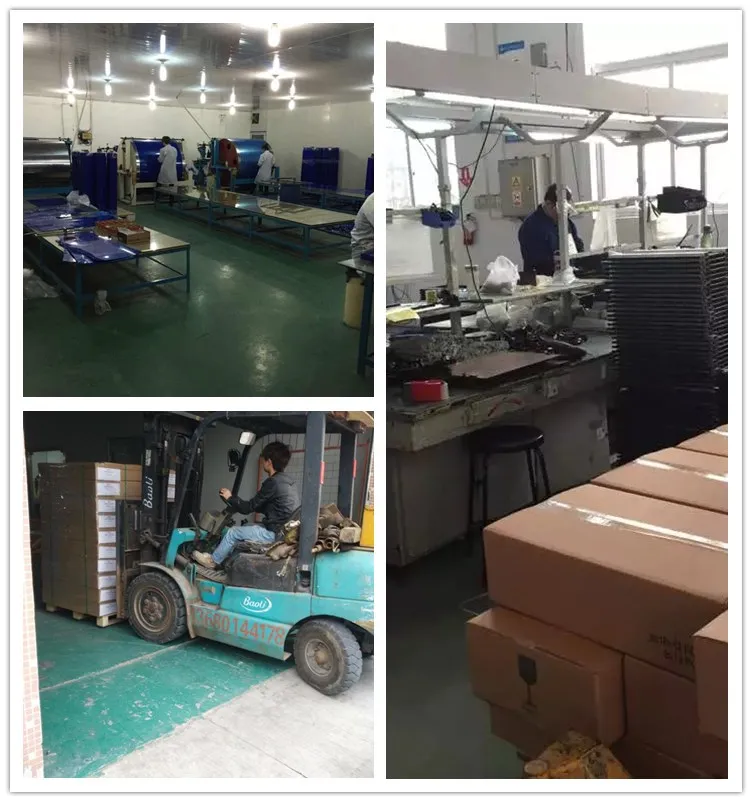

Company Profile
FAQ
● Q1: Are you a manufacturer? ①.Ans:Yes, we have been in manufacturing and providing excellent Cleanroom and ESD solutions for customers more than 10years. ②.Our own production plants and a wide network of suppliers who are strictly selected, are totally qualified for ISO Quality Management System. ● Q2: How long could you prepare samples? Ans:Normally 1days if we have the sample on hand. If customized one, about a week around. ● Q3: How about batch order production? Ans: Normally 3-7days or so ● Q4: Do you inspect the finished products? Ans:Yes, we will do inspection according to ISO standard and ruled by our QC staff. ● Q5: How do you ship the goods? Ans: By sea, by air, by truck or by courier (UPS, DHL, Fedex, TNT etc.) ● Q6: What advantage do you have? Ans: ①.We have professional engineers, customers can expect the best possible advice and support. ②.Related responsible team to answer all your questions and follow-up process for you and do update in time ③.Strict and standard process control according to Quality Management System. ④.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know our products.
