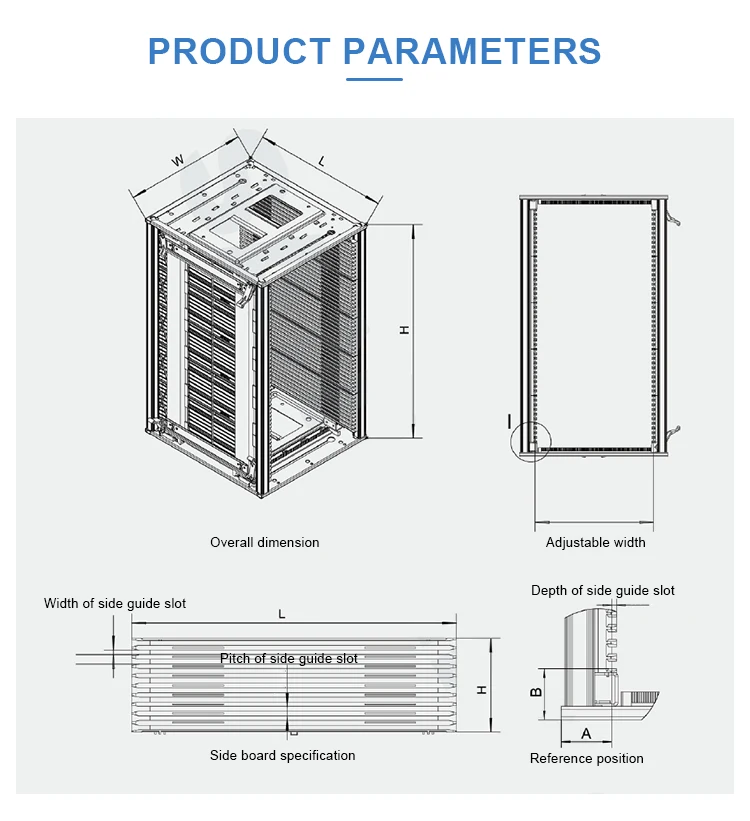

Size | Width Adjustable | Depth | Weight | Weight Capacity | Ref Position |
400x320x563mm | 400x(50-250)mm | 10mm | 6.88kgs | 100Kgs | A=34mm, B=34mm |
355x315x580mm | 355x(80-250)mm | 10mm | 4.96kgs | 20Kgs | A=34mm, B=34mm |
355x320x563mm | 350x(40-250)mm | 10mm | 5.51kgs | 20Kgs | A=34mm, B=34mm |
400x320x563mm | 400x(50-250)mm | 10mm | 6.11kgs | 20Kgs | A=34mm, B=34mm |
355x320x563mm | 350x(50-250)mm | 10mm | 5.67kgs | 20Kgs | A=34mm, B=34mm |
460x400x563mm | 460x(80-330)mm | 10mm | 7.83kgs | 20Kgs | A=34mm, B=34mm |
460x400x563mm | 460x(50-330)mm | 10mm | 8kgs | 20Kgs | A=34mm, B=34mm |
535x460x569mm | 535x(50-380)mm | 10mm | 7.49kgs | 20Kgs | A=34mm, B=37mm |
535x530x569mm | 535x(50-390)mm | 10mm | 13.5kgs | 20Kgs | A=34mm, B=34/40mm |
460x400x563mm | 460x(50-330)mm | 10mm | 8kgs | 20Kgs | A=34mm, B=34/40mm |
535x460x569mm | 535x(50-390)mm | 10mm | 13.5kgs | 20Kgs | A=34mm, B=34/40mm |
535x530x569mm | 535x(50-390)mm | 10mm | 14.5kgs | 20Kgs | A=34mm, B=34/40mm |
Base Board Material | Heat Resistance | Surface resistance | Adjust way | Side board Structure |
Aluminum; Plastic | 80℃/120℃ | 10^6~10^9 | Gear Track/Screw | Plastic, combined panel |
Plastic | 80℃ | 10^6~10^9 | Screw | Plastic panel |
Aluminum; Plastic | 100℃/120℃/150℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
Aluminum; Plastic | 80℃/120℃/200℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
Aluminum; Plastic | 80℃/120℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
Aluminum; Plastic | 100℃/120℃/150℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
Aluminum; Plastic | 85℃/120℃/200℃ | 10^6~10^9 | Screw | Plastic panel |
Aluminum; Plastic | 100℃/120℃/150℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
Aluminum; Plastic | 85℃/120℃/200℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
Aluminum | 300℃ | 10^4~10^6 | Screw | Aluminum panel |
Aluminum | 300℃ | 10^4~10^6 | Gear Track | Aluminum panel |
Aluminum | 300℃ | 10^4~10^6 | Gear Track | Aluminum panel |
